UPS-ZT10 Underground Shotcrete Machine Wet Concrete Spraying Machine

Name: UPSZT10 Underground Shotcrete Machine Wet Concrete Spraying Machine
Brand: Jarlo
Price: 45000 USD

Wholesale UPS-ZT10 Underground Shotcrete Machine Wet Concrete Spraying Machine from china suppliers

Brand Name : Jarlo

Model Number : UPS-10ZT

Certification : China National Mining Safety Certificate

Place of Origin : Anqing China

MOQ : 1

Price : 45000-55000 USD

Payment Terms : L/C, T/T

Supply Ability : 1000 sets/year

Delivery Time : 30-45days

Packaging Details : Container loaded

Capacity : 10 Cubic Meters/Hour

Power : Deisel engine for driving, electric motor for working

Cab : FOPS/ROPS

Engine : Yunnei

Contact Now

UPS-10ZT Deisel Engine Shotcrete Machine

1. Performance

1. The use of handheld spray heads for spraying operations can realize flexible switching between single-head and multi-head spraying operations.

2. The car chassis is driven, the transfer speed is fast, and the 50-meter cable greatly improves the efficiency of construction.

3. It has outstanding advantages such as high spraying efficiency, long conveying distance, low rebound rate, small wear of machine parts, long service life, low consumption of accessories, and low technical requirements for operators.

2. Dimension

UPS-ZT10 Underground Shotcrete Machine Wet Concrete Spraying Machine

3.Technical parameters

Project		Unit	Parameters
Dimensions (length x width x height)		mm	5800×1700×2000(±100)
Machine weight		kg	5800

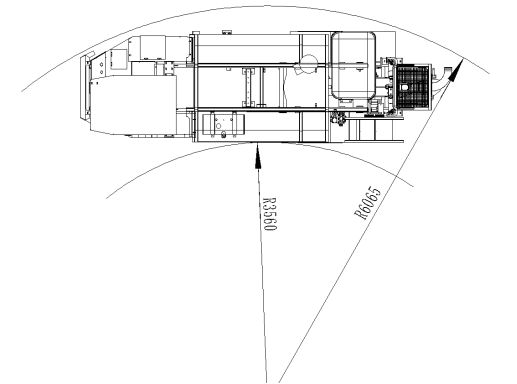

Minimum turning radius		mm	Inner3560 Outer 6065
Minimum ground clearance		mm	175
Concrete pump	Model, manufacturer	/	Jarlo
	Displacement	m³/h	10
	Concrete pumping pressure	(MPa)	5
	Concrete slump	(cm)	12-15
	Maximum aggregate size	(mm)	15
	Concrete cylinder (inner diameter × stroke)	mm	∅120×550
Engine	Model	/	YN27PTF4
	Manufacturer	/	Yunnei
	Rated power/speed	(kW/rpm)	36.8/2400
	Exhaust emission standard	/	National IV
Motor	Model	/	YE3-160M-4
Motor	Rated power/speed	(kW/rpm)	11/1475
Air compressor system	Manufacturer	/	Yilifang
	Model	/	DLG-10/5
	Type	/	Screw type air compressor
	Equipped motor power	(kW)	45
	Air supply volume	(m³/min)	10
	Air pressure	(MPa)	0.55
Feeding height		mm	1100
Cable length		m	50
Driving system	Driving mode	—	By tire
	Driving speed	km/h	≤25
	Climbing ability	(°)	14
	Approach angle	(°)	Front 21°Back 18°
	Braking mode	——	Parking: Closed spring brake, hydraulic release
	Braking distance	m	3.3
	Wheelbase	mm	2360
Accelerator system	Accelerator pump model	/	GM 300L/H
	Drive mode	/	Motor drive
	Accelerator displacement	L/h	300
	Accelerator maximum pressure	MPa	0.6
Hydraulic system	Oil tank capacity	L	250
Hydraulic system	Main pump displacement	ml/r	63
